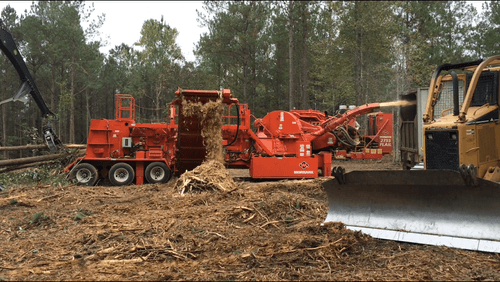

the 2755 Flail Chiparvestor is ideal for some of your toughest jobs
Offering three- or four-knife chipper disc options, the 2755 Flail Chiparvestor is ideal for some of your toughest jobs. A 27" (68.58 cm) diameter chipping capacity and lift capacity of 17,200 lb (7,800 kg) at 10' (3.05 m) make the 2755 one of the toughest machines for any job. Customizable options include ESPAR heating system for cold-weather starts, discharge spout extension to load open vans or rail cars, debris plow in lieu of telescoping conveyor, and remote control. The enclosed weatherized operator’s cab is mounted on rubber shock absorbers and tilts hydraulically for transport and includes combination air conditioner/heater and six-way adjustable seat and joystick controls.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
- Flail drive is a closed-loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab.
- Each disc is fabricated from plate steel and put through ultrasonic testing. Material certification is issued for each disc, which provides the best chipper disc in the industry.
- MICS (Morbark Integrated Control System) monitors hydraulic pressures, temperatures, and engine parameters; controls auto-reversing fan functions and feed functions; and allows utilization of remote diagnostic system.
- Mor-Lift Model 500 Knuckleboom Loader has 23' reach, 270-degree swing and 17,200 lb lift at 10'.
Specifications
- Length: 55'
- Height: 13'6"
- Width: 11'11"
- Gross Weight (approximate): 120,960 lb
- Infeed Opening: 23" x 55"
- Engine: CAT
- Horsepower: 1,200 HP
- Fuel Capacity (tank): 500 gallons
- Hydraulic Oil: 426 gallons
- Tires: 11Rx22.5x16-ply radial
- Brakes: Air
- Towing arrangement: Fifth Wheel
- Length: 16.76 m
- Height: 4.11 m
- Width: 3.63 m
- Gross Weight (approximate): 54,866 kg
- Infeed Opening: 58.42 x 139.7 m
- Engine: CAT
- Horsepower: 895 kW
- Fuel Capacity (tank): 1,892 litres
- Hydraulic Oil: 1,612 litres
- Tires: 11Rx22.5x16-ply radial
- Brakes: Air
- Towing arrangement: Fifth Wheel
