Compact, affordable, productive drum chipper

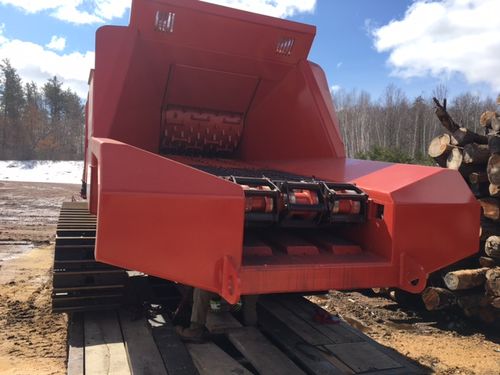

The Morbark 40/36 Whole Tree Drum Chipper is a compact, affordable, productive drum chipper designed with the biomass industry in mind. Equipped with the same internal drive perfected on Morbark horizontal grinders, along with an extra wide feed opening, the 40/36 aggressively feeds brushy tops and limbs, quickly and effortlessly filling a chip van to maximum legal load capacity. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime. The feed system is more efficient due to a staggered knife configuration and contains fewer moving parts, reducing maintenance. With low fuel consumption per ton produced, this unit is economical. At 8’6″ (2.59 m) wide this compact unit is easily transportable and requires no permits to move.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
- The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
- The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
- Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
- Aggressive live floor and large top feedwheel ensure positive feed of brushy tops and limbs.
Specifications
- Chipping Capacity: 24"
- Infeed Opening: 40" x 39"
- Length: 37'5"
- Height: 12'4.25"
- Width: 8'6"
- Gross Weight: 52,500 lb
- Tongue Weight: 22,750 lb
- Axle Weight: 31,750 lb
- Engine: CAT
- Horsepower: 800-875 HP
- Fuel Capacity (tank): 300 gallons
- Hydraulic Oil: 187 gallons
- Tires: (4) Super Singles 385/65R/22.5 20-ply
- Brakes: Air
- Towing arrangement: Fifth Wheel
- Tracks: Optional
- Chipping Capacity: 60.96 cm
- Infeed Opening: 101.6 cm x 99.06 cm
- Length: 11.4 m
- Height: 3.75 m
- Width: 2.59 m
- Gross Weight: 23,813 kg
- Tongue Weight: 10,320 kg
- Axle Weight: 14,400 kg
- Engine: CAT
- Horsepower: 596.6 - 653 kW
- Fuel Capacity (tank): 1,135 liters
- Hydraulic Oil: 708 liters
- Tires: (4) Super Singles 385/65R/22.5 20-ply
- Brakes: Air
- Towing arrangement: Fifth Wheel
- Tracks: Optional
